【C】CRAFTED Track frame /550/530/Rear120

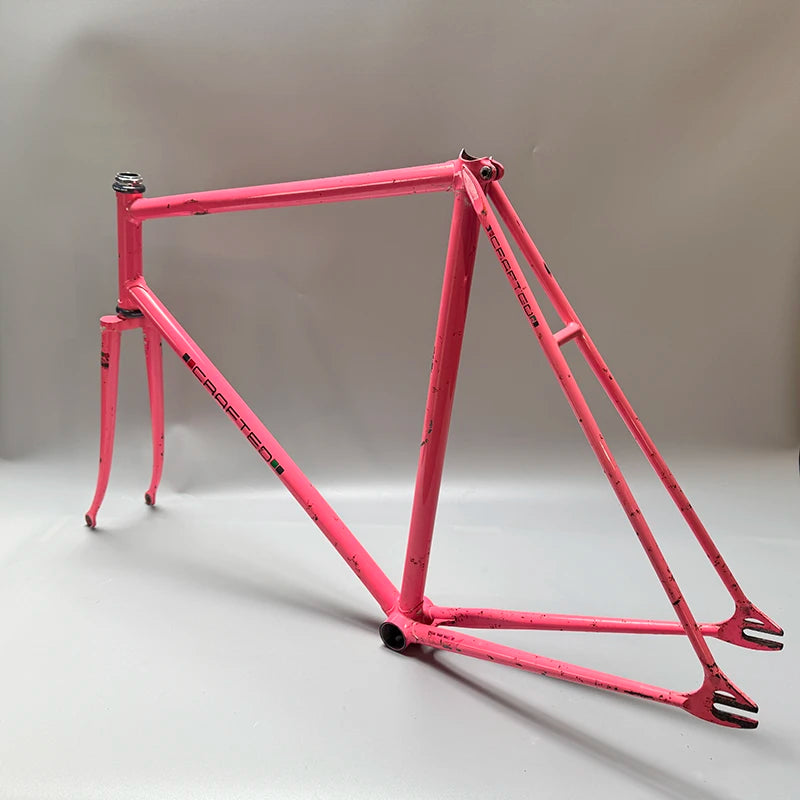

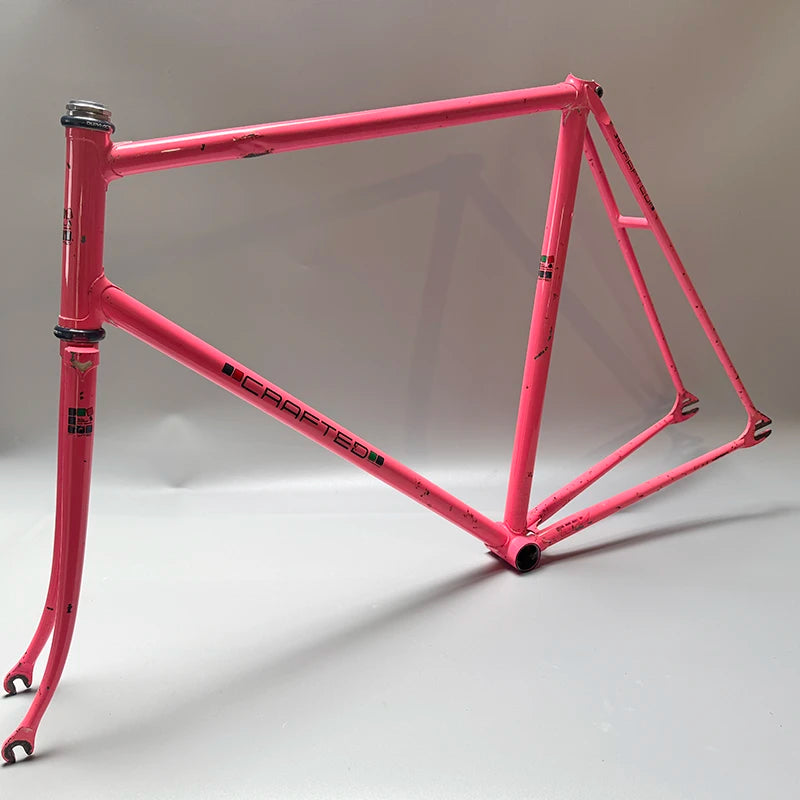

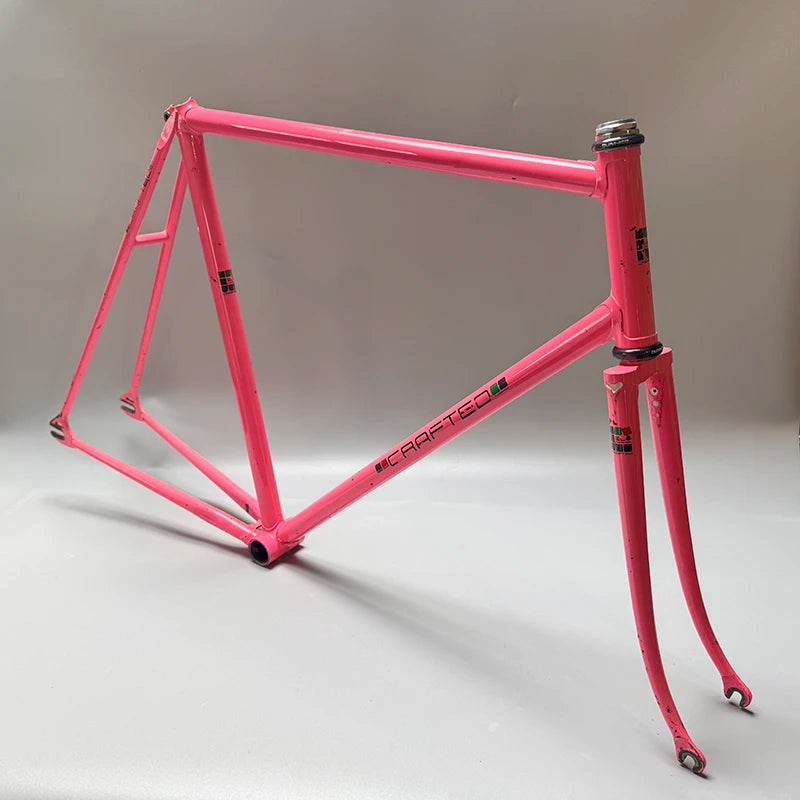

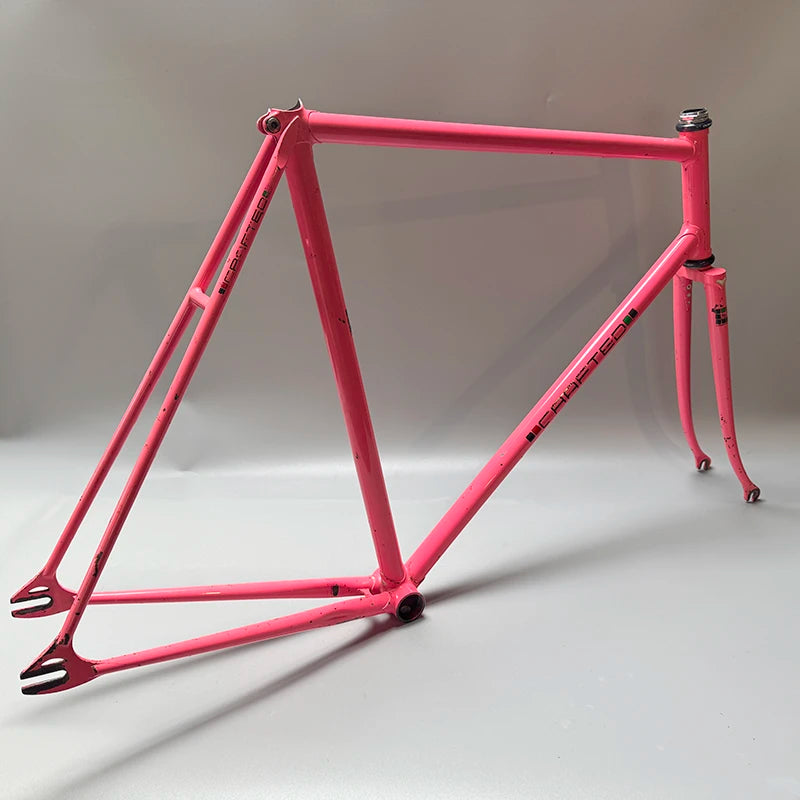

This eye-popping fluorescent pink CRAFTED track frame is sure to turn heads. Handmade in Fukui Prefecture, CRAFTED not carry NJS certification, but the geometry on this frame is remarkably clean and balanced for track use. With relatively moderate seat and head angles, it’s especially well-suited for riders around 180cm in height.

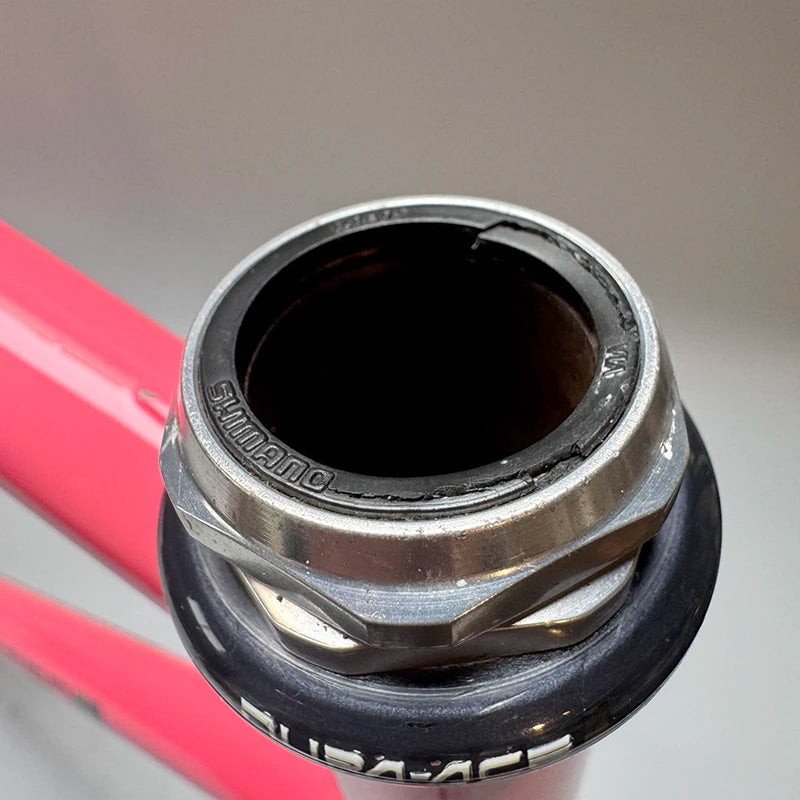

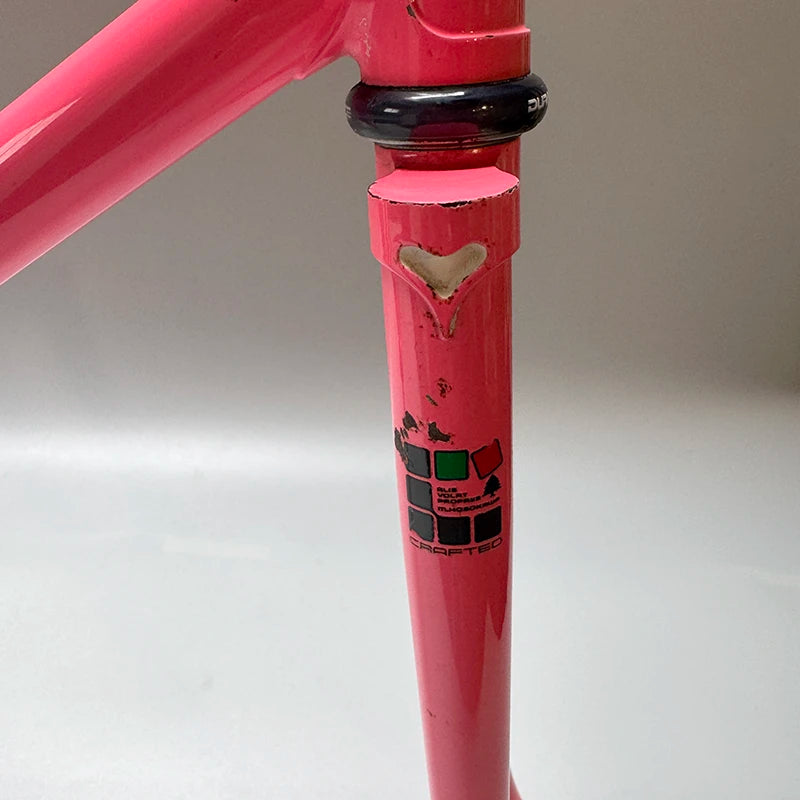

There is a crack in the plastic sealing part of the Dura-Ace headset (as shown in the photos), but it does not affect stem installation and is functional as is.

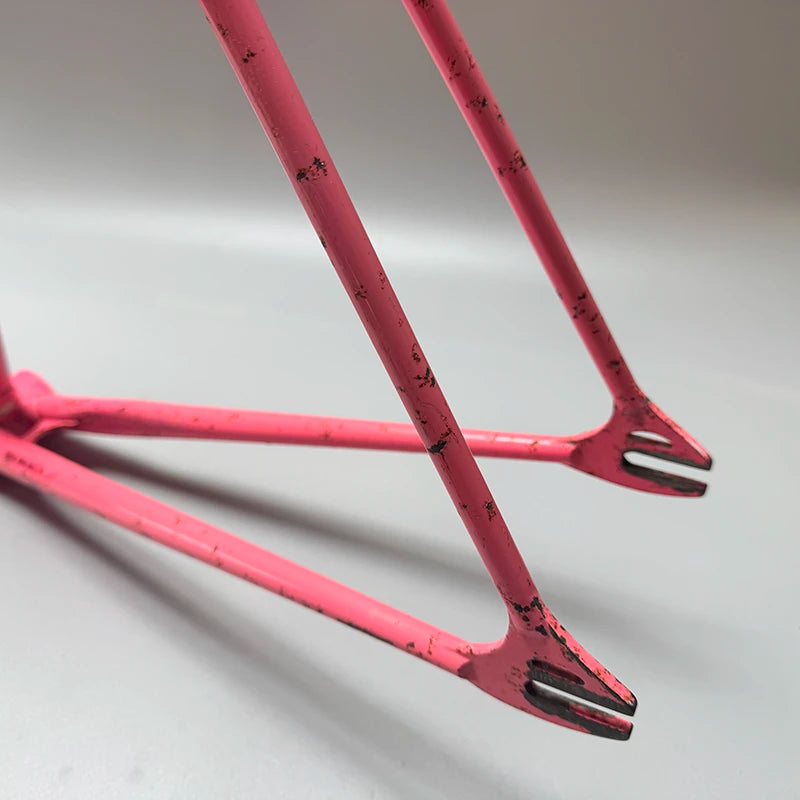

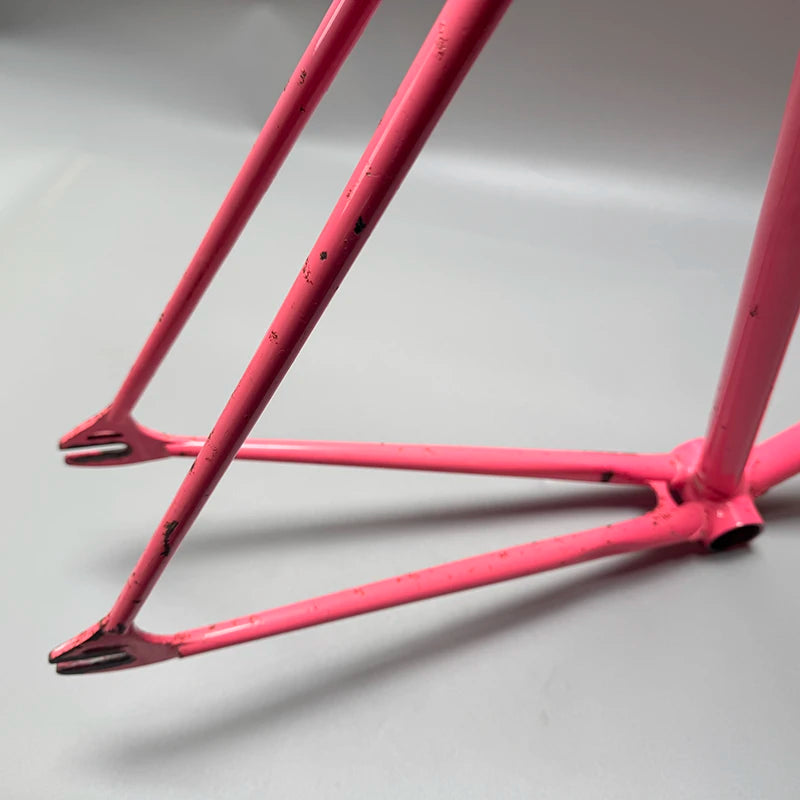

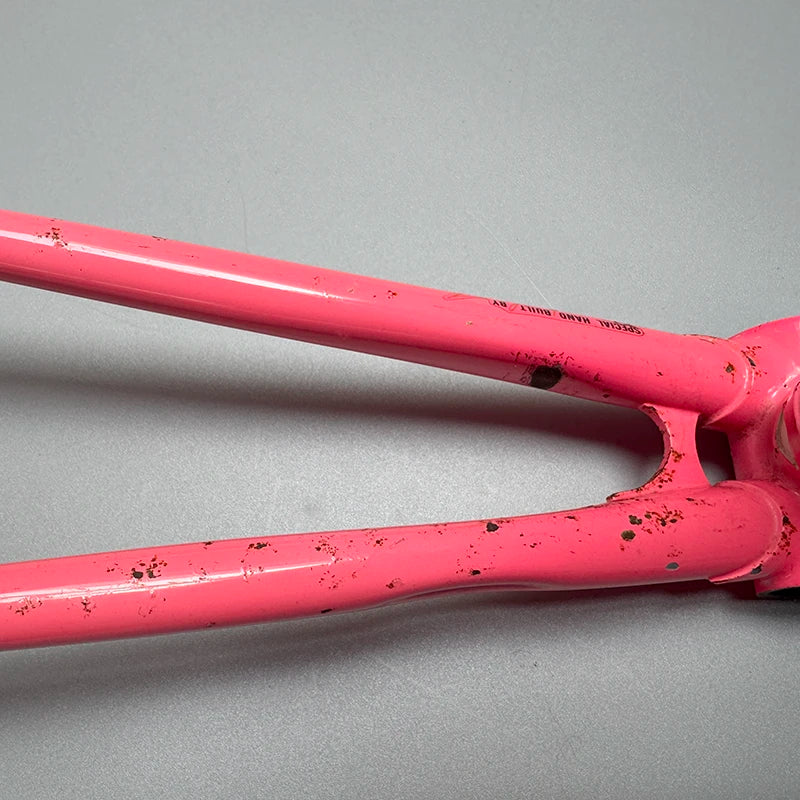

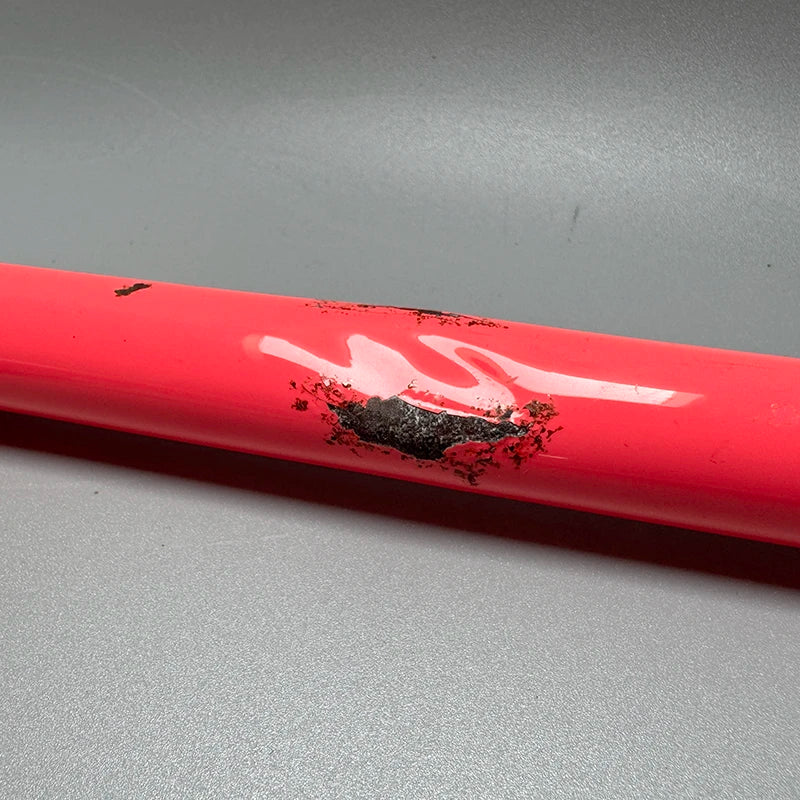

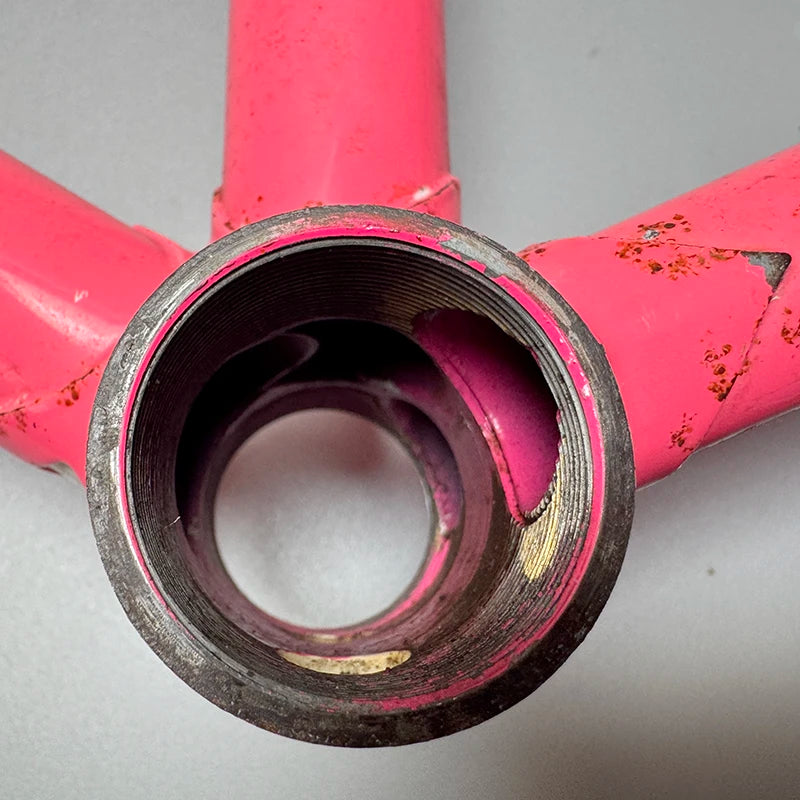

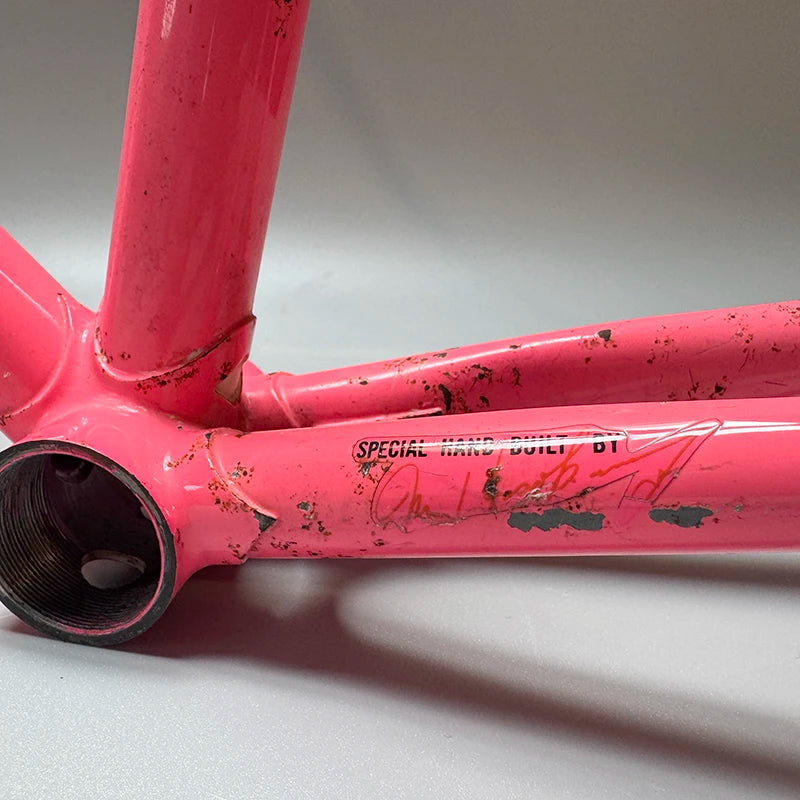

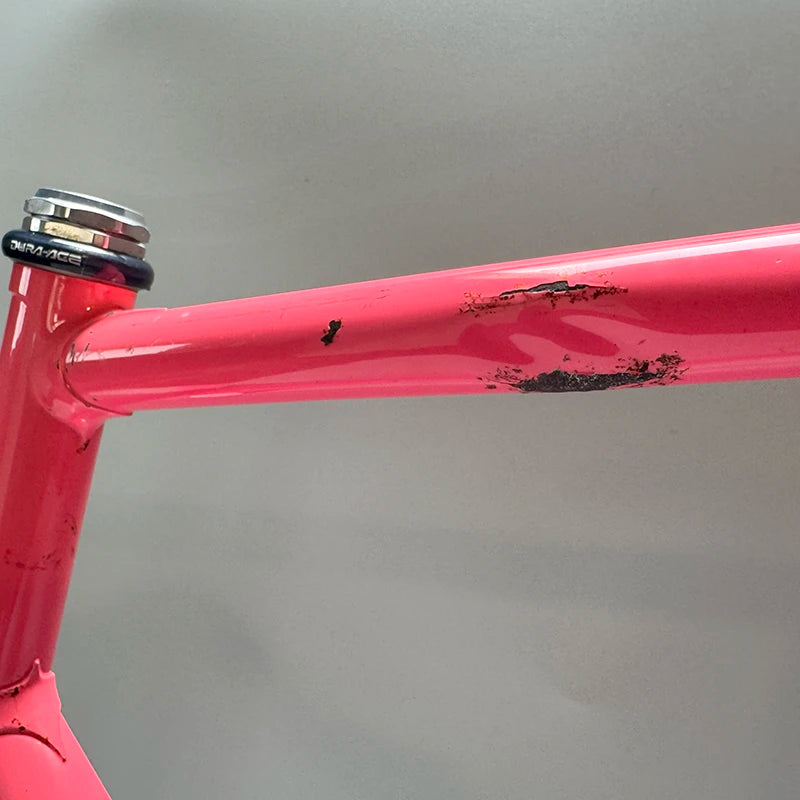

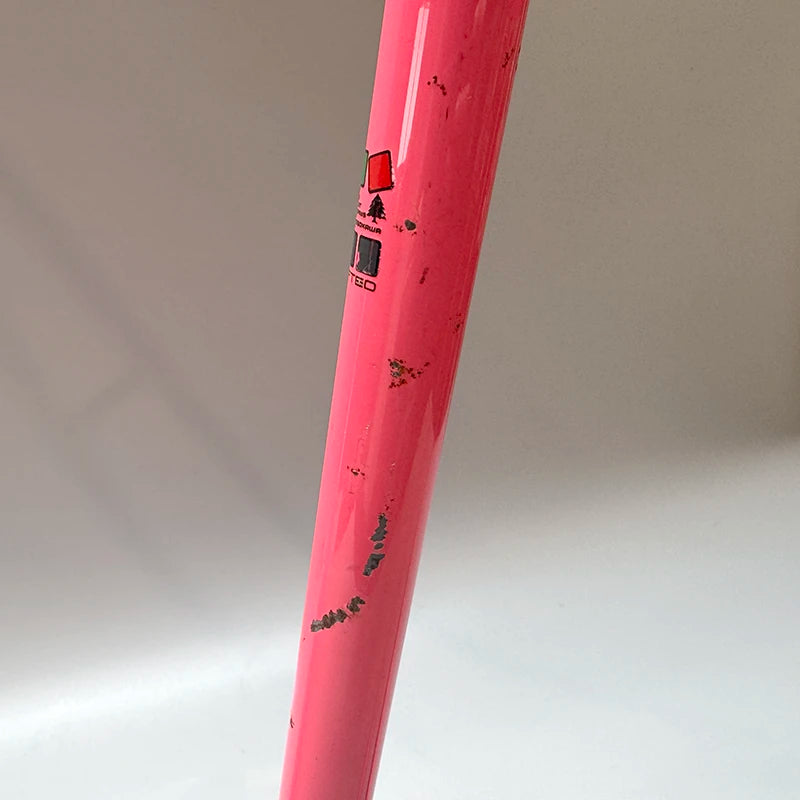

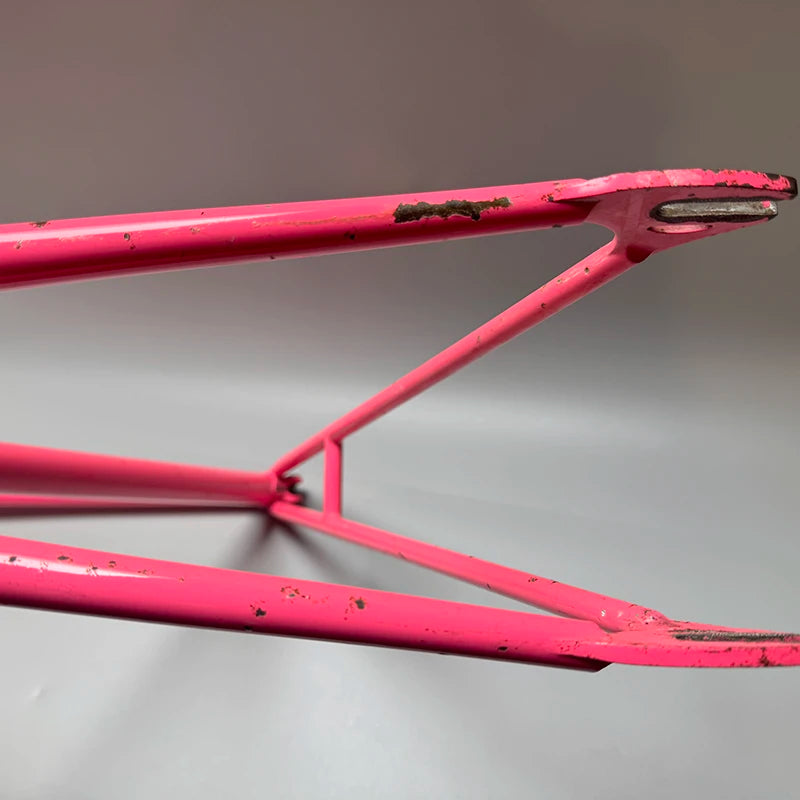

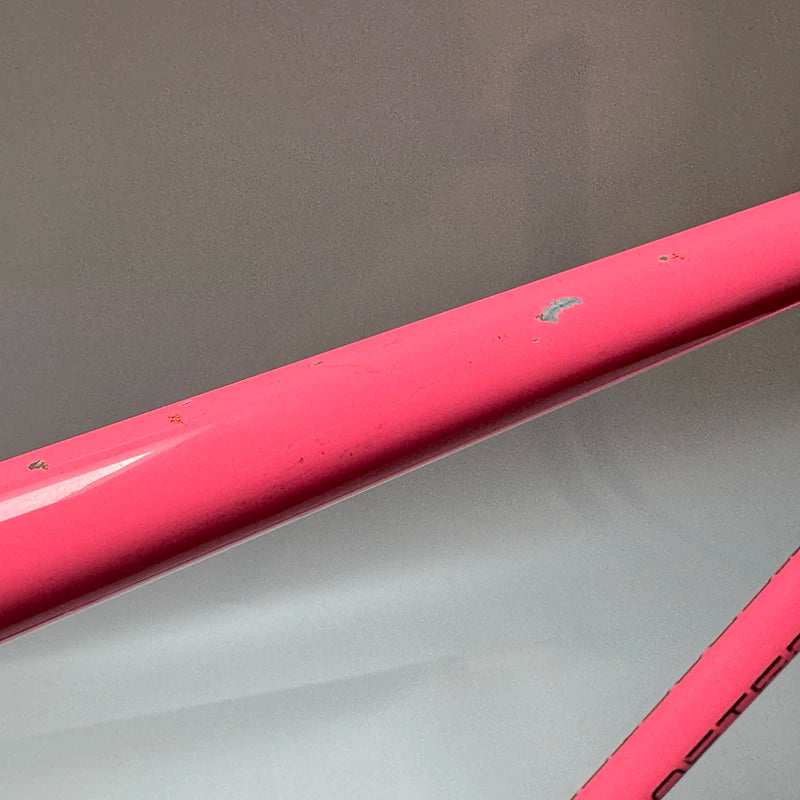

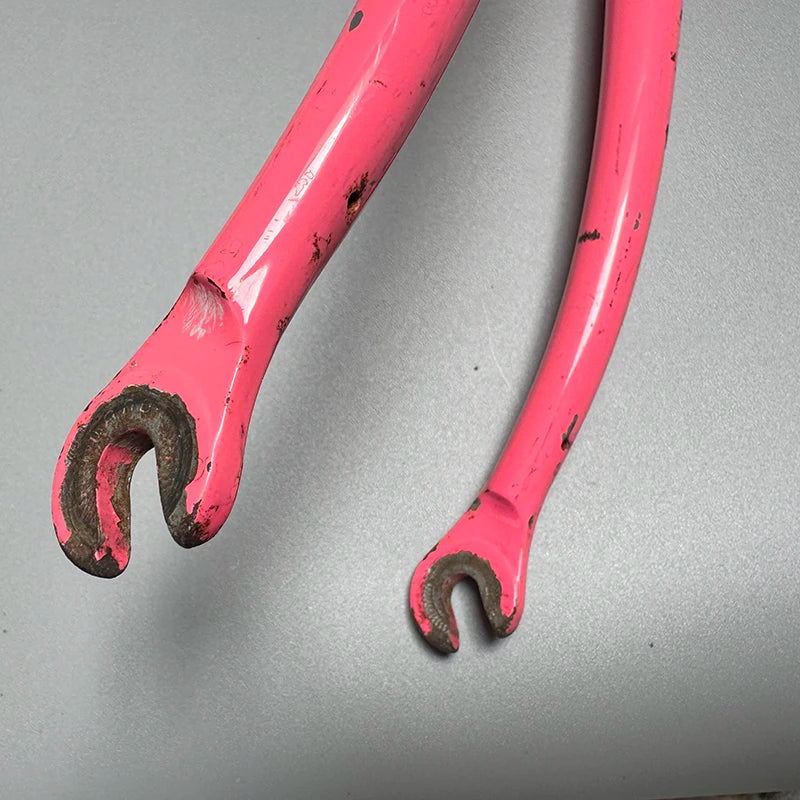

Unfortunately, there’s a noticeable 4cm dent on the left side of the top tube, with some rust forming around it. The frame also shows rust in various spots where the paint has been scratched. However, the interior of the tubing, where visible, is in decent condition.

Despite these flaws, the rare and vibrant fluorescent color makes this frame something special.

Note: The seatpost diameter is 26.8mm, so please ensure compatibility when selecting components.

Item#: 116
Builder brand: CRAFTED
Condition: C
Weight:  2.58kg
Pipe: un known
Head set: dura ace HP-7600
----
Seat tube C-C (A): 550mm
Top tube C-C (B): 530mm

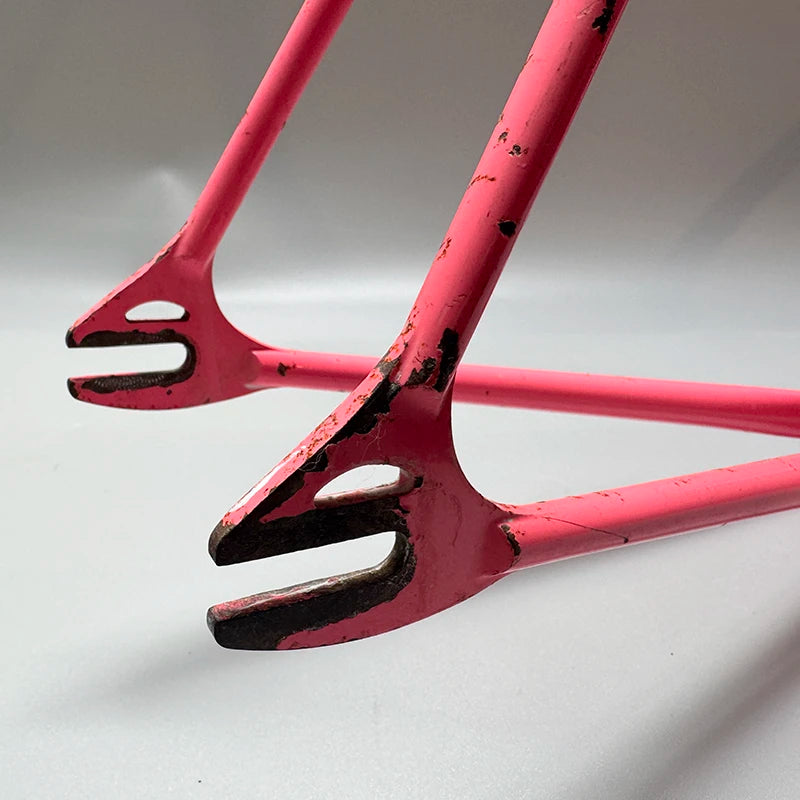

Rear end width (K): 120mm

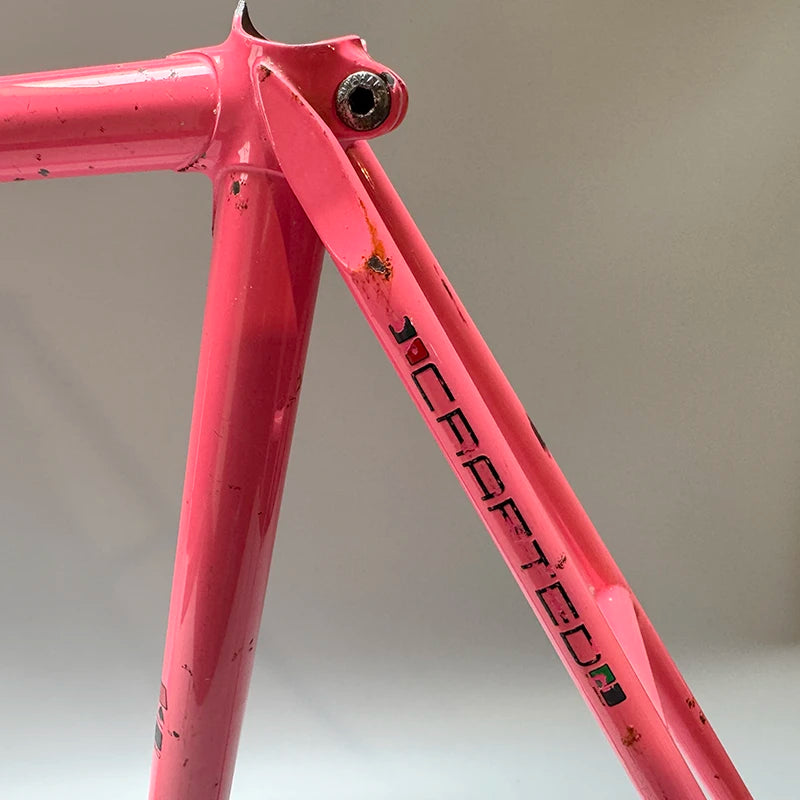

Seat post diameter (J): 26.8mm
Seat angle (C): 75°

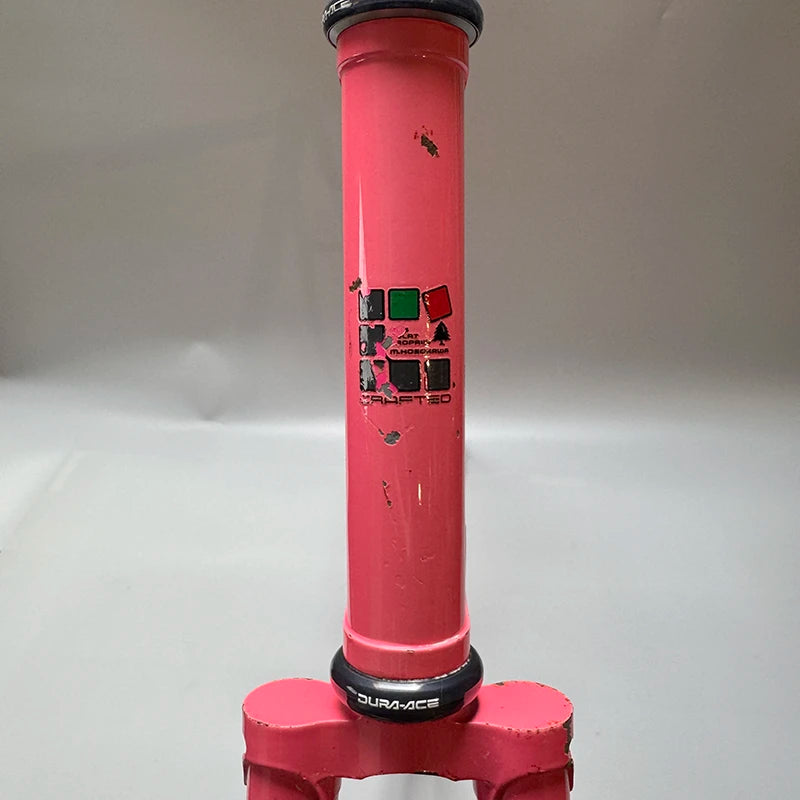

Head tube (D): 160mm
Head angle (E): 73°
Rear to center (F): 380mm
Front to center (G): 580mm
BB Drop (H): 55mm

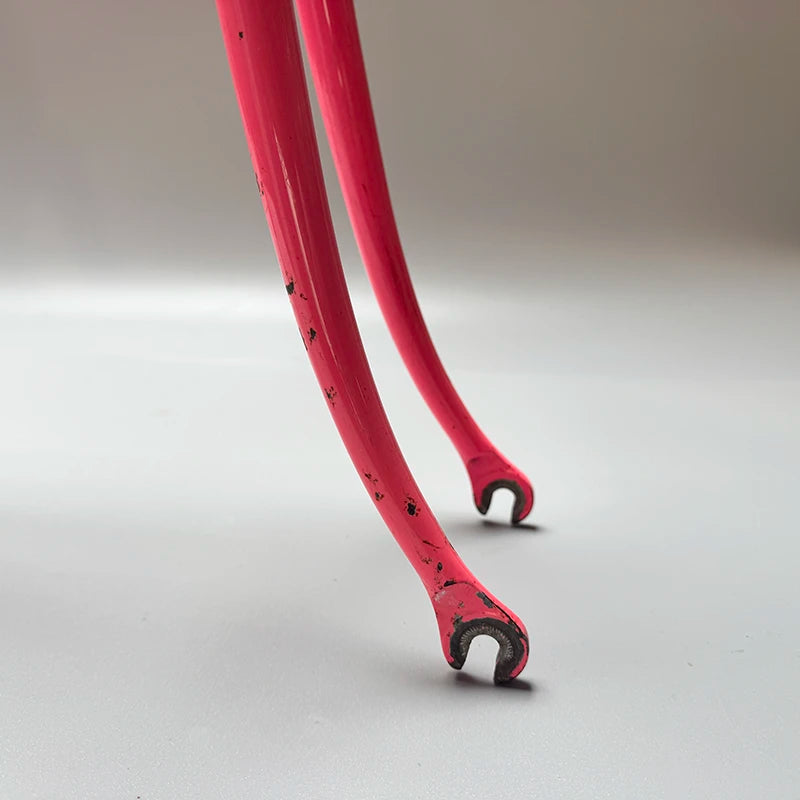

Fork offset (I): 35mm

Fork offset (I): 45mm
